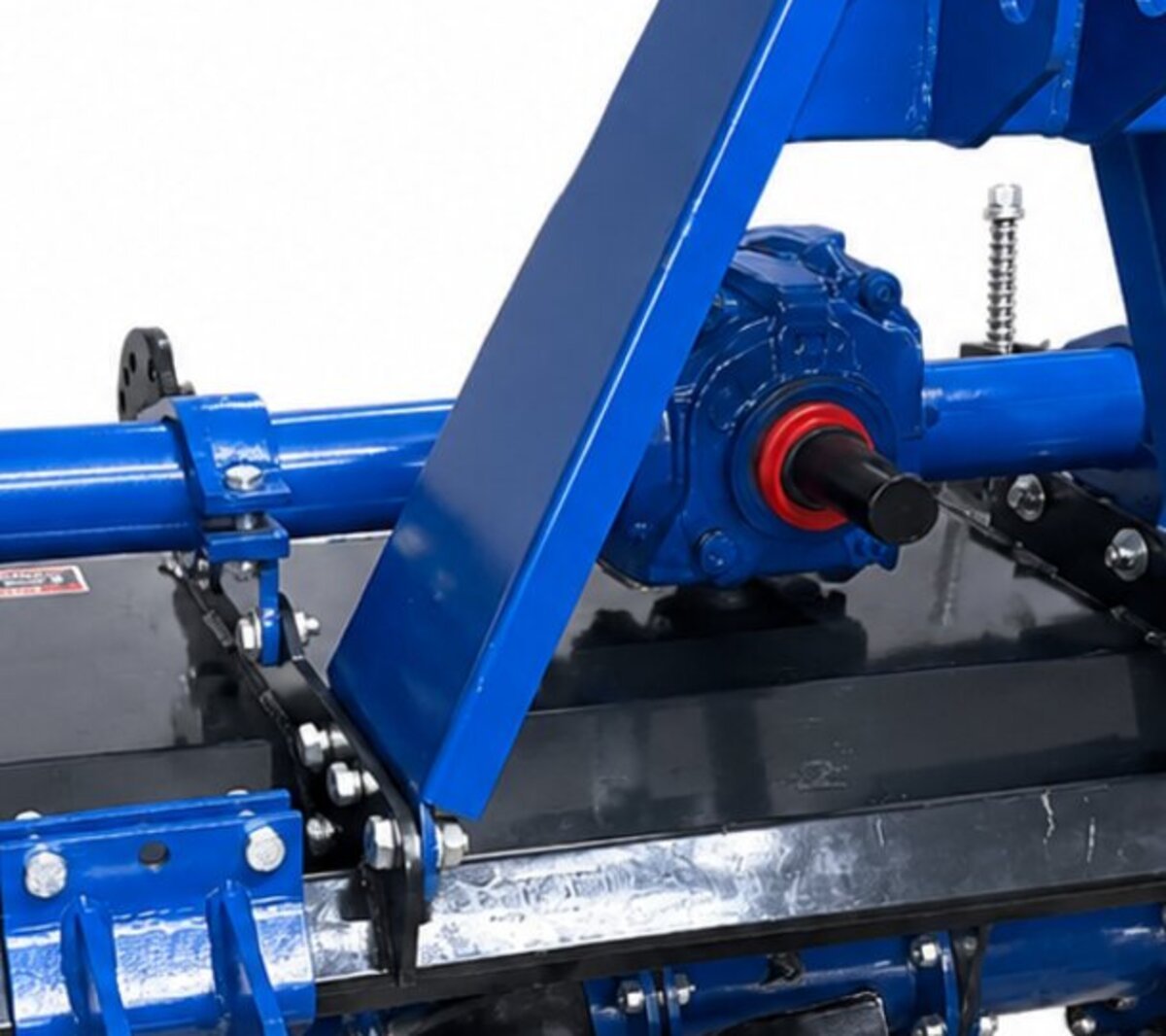

Heavy-Duty Gearbox
Dual-speed gearbox on the rotor drive, built for high torque and long service life.
- Dual-speed gearbox
- 540 / 1000 RPM PTO input
- Tractor PTO driven
Engineered for
Strength.
Strength.
Reliability.
Performance.
Every WINNERS rotavator is built with precision engineering, proven materials and field-tested design to deliver consistent results in demanding conditions.
Stronger buildHeavy-duty construction
Longer lifeWear-resistant components
Consistent workSmooth & efficient operation
Easy serviceAccessible & reliable design
45–90+ HPTractor matching
540 / 1000 RPMPTO speed
Gear driveSide transmission
Category II3-point hitch
L / CBoron steel blades
5–12 ftNominal sizes
Engineering
Engineering that delivers

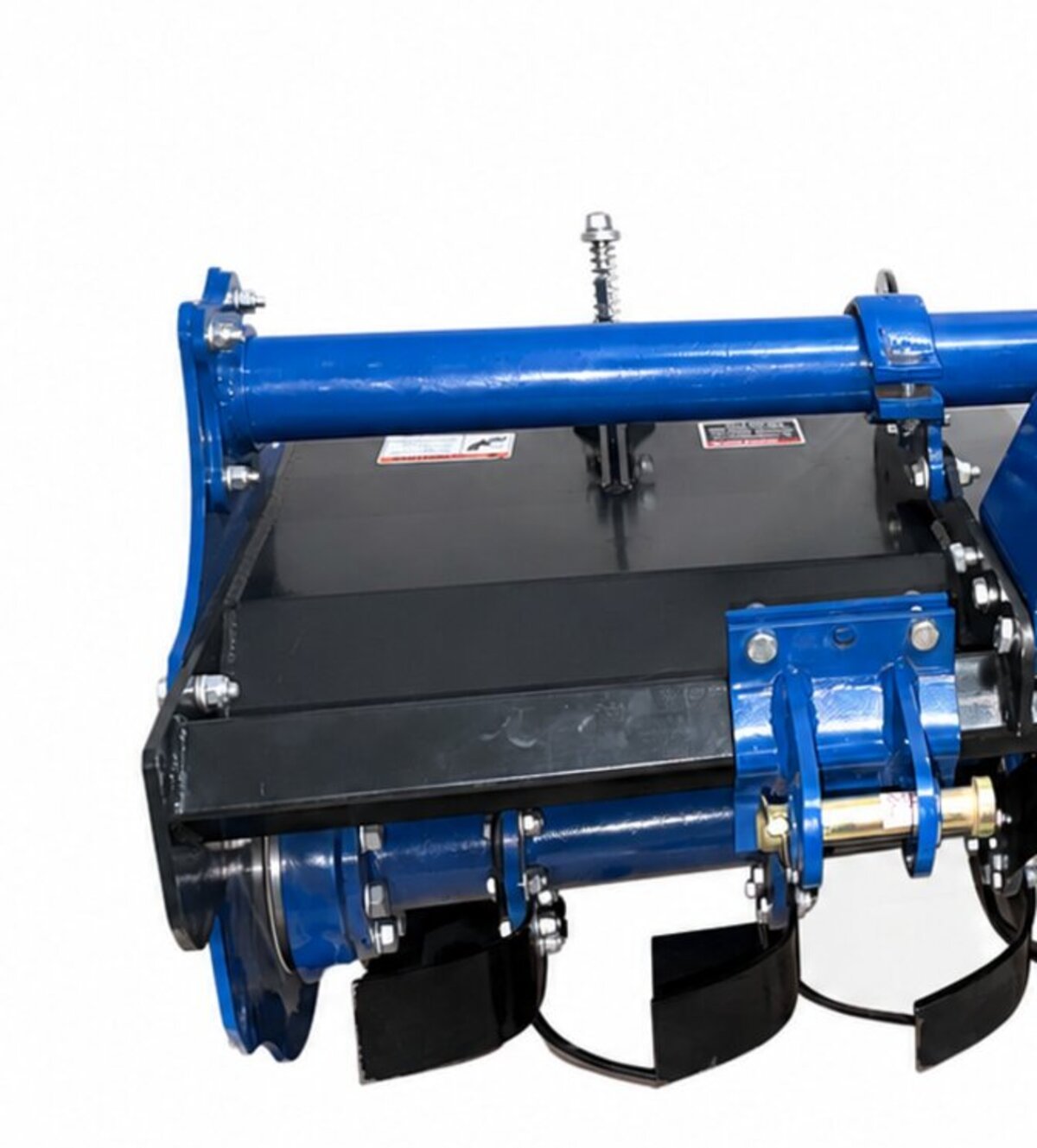

Side Transmission
Power reaches the rotor through an enclosed gear-drive side transmission for steady, efficient transfer.
- Gear drive
- Enclosed side transmission
- Built for continuous work

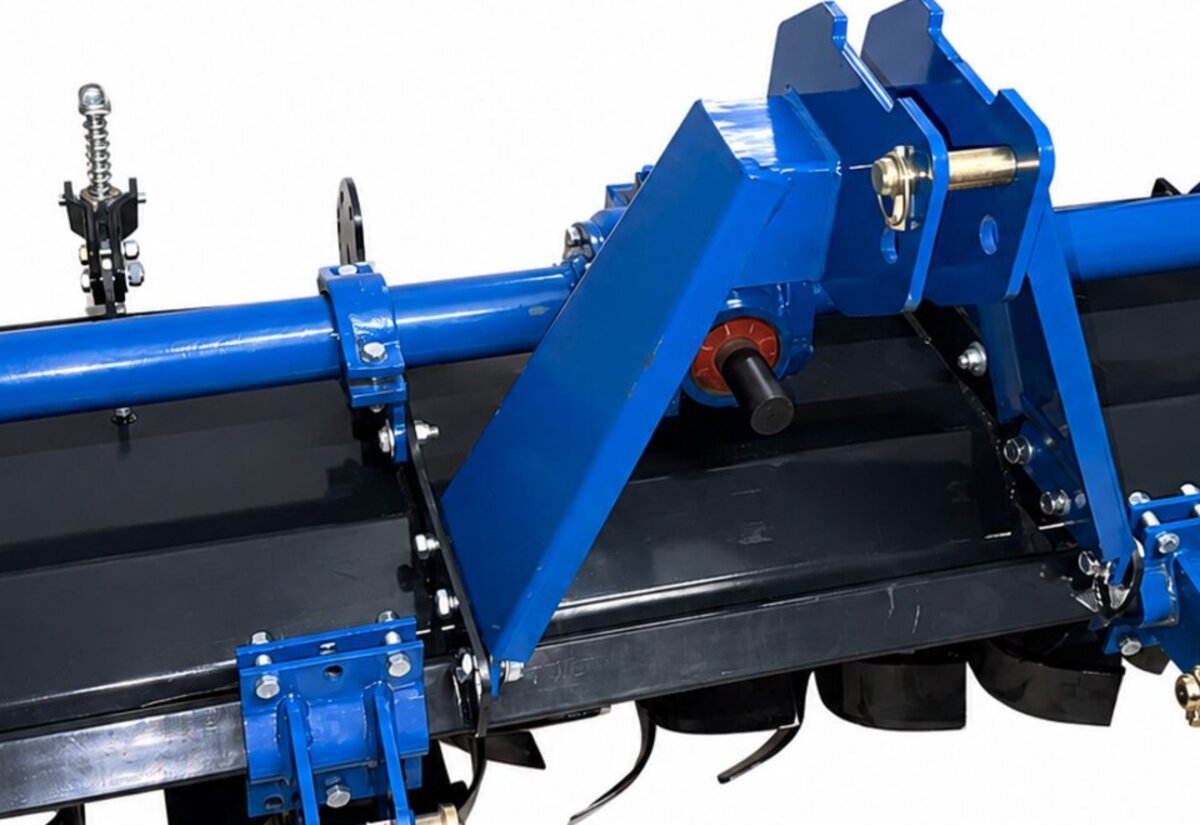

Reinforced Frame
Heavy-duty frame and top mast built for rigidity and stress resistance in hard field conditions.
- Heavy-duty structure
- Reinforced top mast
- Built for long life
High-Strength Blades
Boron-steel tillage blades cut, mix and pulverize soil and incorporate crop residue.
- Boron steel blades
- L / C blade options
- Replacement blades available
Rear Board & Spring Control
An adjustable rear board on damper springs levels the worked soil and absorbs shock in the field.
- Adjustable rear board
- 2 or 4 damper springs by model
- Better levelling and stability
Blade Options
L-type and C-type boron-steel blades are produced in several flat sizes and hole patterns.
- L type and C type
- Multiple hole pitches
- Made-to-order sizes

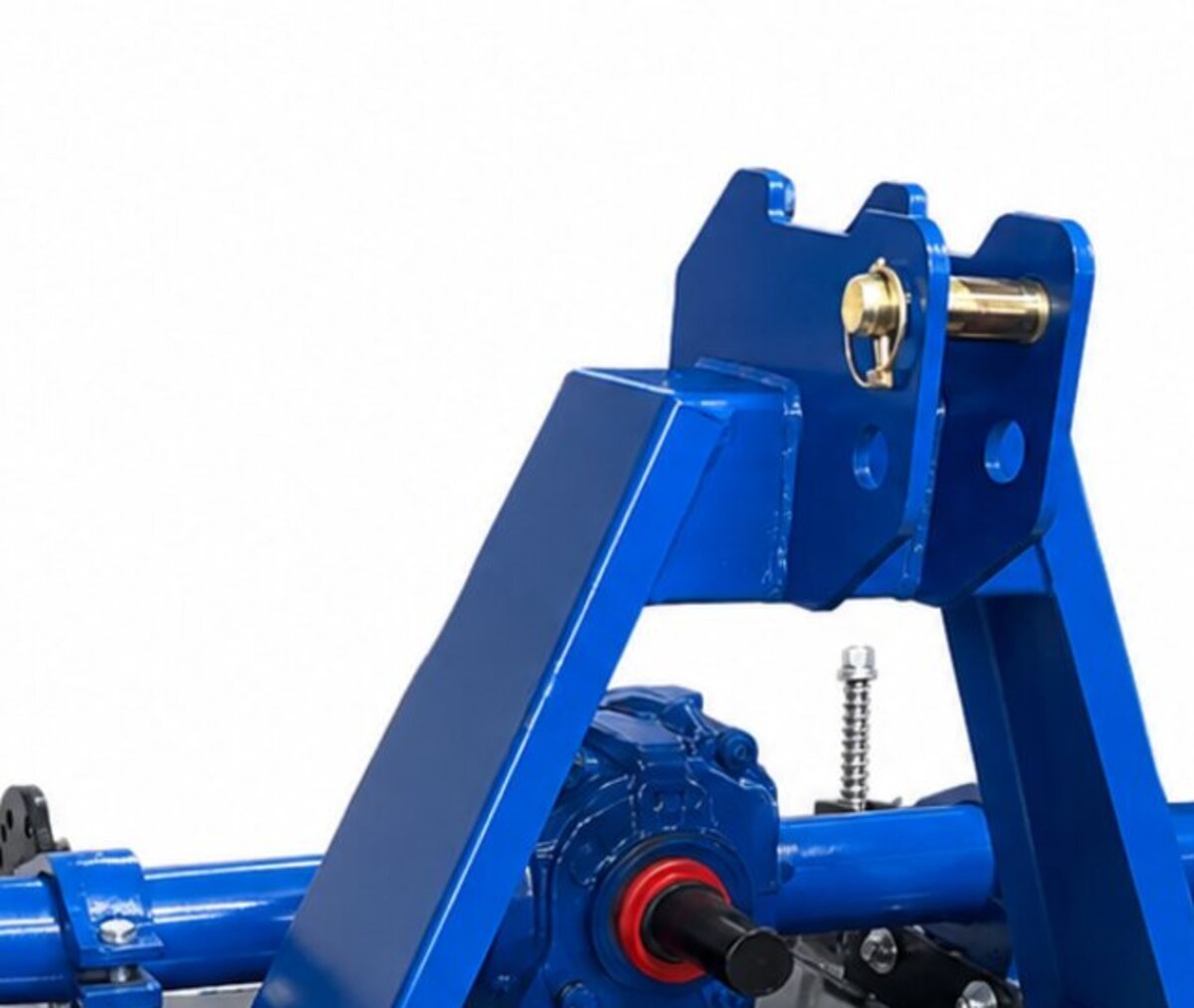

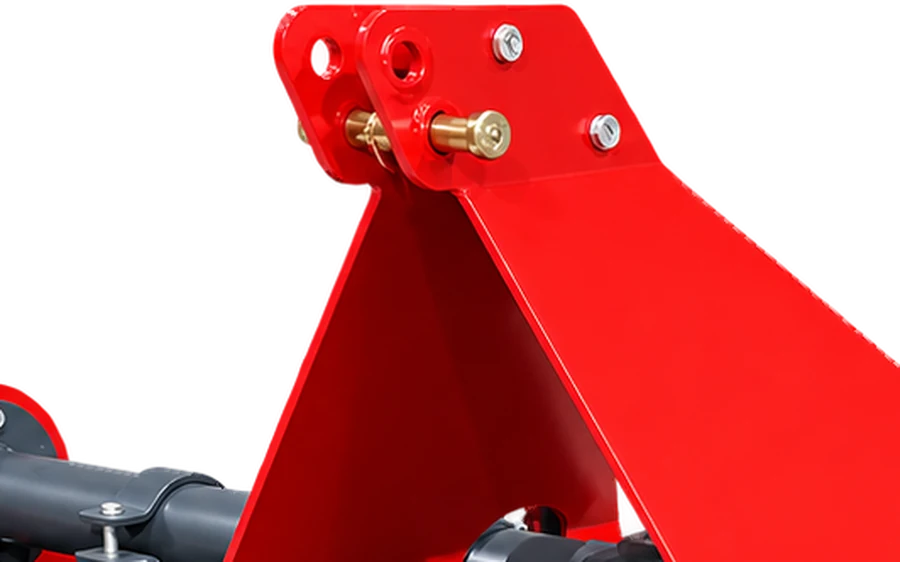

PTO & Hitch Compatibility
Category II three-point linkage and a standard PTO input make tractor mounting straightforward.
- Category II 3-point hitch
- 540 / 1000 RPM PTO
- Standard PTO shaft
Why WINNERS
Design decisions behind the machine
Dual-Speed Gearbox
Allows the operator to choose the right rotor speed according to soil condition and tractor power.
Heavy-Duty Structure
Strong body and frame design for long-lasting performance in tough field conditions.
Efficient Soil Pulverization
Helps break soil clods and prepare a smooth seedbed for better sowing.
Boron Steel Blades
Durable boron steel blades designed for effective cutting, mixing, and tillage operation.
Suitable for Multiple Soil Conditions
Can be used for dry land and regular field preparation.
Better Fuel Efficiency
Designed for smooth operation and reduced load on the tractor when used correctly.
Low Maintenance Design
Built for easy service, long working life, and dependable field performance.
Available in Different Sizes
Available in 5 ft, 6 ft, 7 ft, 8 ft, 10 ft and 12 ft nominal sizes.
Technical Specifications
Full range comparison
| Specification | BW5H | BW6H | BW7H | BW8H | BW10H | BW12H |
|---|---|---|---|---|---|---|
| Suitable tractor | 45+ HP | 55+ HP | 65+ HP | 75+ HP | 90+ HP | 90+ HP |
| Tillage width | 59 in / 149 cm | 69 in / 175 cm | 79 in / 200 cm | 87 in / 220 cm | 114 in / 291 cm | On request |
| Overall width | 70 in / 179 cm | 80 in / 204 cm | 90 in / 230 cm | 98 in / 249 cm | 126 in / 320 cm | On request |
| Approx. weight | 410 kg | 442 kg | 484 kg | 536 kg | 640 kg | On request |
| Blade count | 36 | 42 | 48 | 54 | 66 | On request |
| Damper springs | 2 | 2 | 4 | 4 | 4 | On request |
| PTO speed | 540 / 1000 RPM | 540 / 1000 RPM | 540 / 1000 RPM | 540 / 1000 RPM | 540 / 1000 RPM | Confirm with order |
| Transmission | Gear drive | Gear drive | Gear drive | Gear drive | Gear drive | Confirm with order |
| Hitch | Category II 3-point hitch | Category II 3-point hitch | Category II 3-point hitch | Category II 3-point hitch | Category II 3-point hitch | Confirm with order |
| Blade options | L / C boron steel | L / C boron steel | L / C boron steel | L / C boron steel | L / C boron steel | Confirm with order |
Scroll the table sideways to compare every model. BW12H is a made-to-order model — its detailed dimensions are confirmed with the order.
Standard Specifications
Common across the range
| Brand | Winners |
|---|---|
| Product type | Rotary tiller / rotavator |
| Gearbox | Dual-speed gearbox |
| Structure | Heavy-duty frame |
| Transmission | Gear drive |
| Blade type | Boron steel rotavator blades, L / C |
| PTO speed | 540 / 1000 RPM |
| Hitch | Category II 3-point hitch |
| Usage | Soil preparation, seedbed preparation, weed control, crop residue mixing |
| Suitable for | Agriculture, horticulture, and field preparation |
| Condition | New |
Working depth and rotor speed depend on soil condition, tractor setup and operating practice; ask us to confirm them for your machine.
